C#——Marshal.StructureToPtr方法简介

晨曦之光 发布于 2012/03/09 14:14
阅读 9K+
收藏 0
本博客( http://blog.csdn.net/livelylittlefish)贴出作者(三二一、小鱼)相关研究、学习内容所做的笔记,欢
迎广大朋友指正!


具体可以参考 http://msdn.microsoft.com



Marshal.StructureToPtr方法简介




1. 功能及位置



将数据从托管对象封送到非托管内存块,属于.NET Framework 类库
命名空间:System.Runtime.InteropServices
程序集:mscorlib(在 mscorlib.dll 中)



2. 语法



C#:
      [ComVisibleAttribute(true)] public static void StructureToPtr (Object structure,IntPtr ptr,bool fDeleteOld);
C++:
      [ComVisibleAttribute(true)]public: static void StructureToPtr (Object^ structure, IntPtr ptr, bool fDeleteOld);



3. 参数说明



structure:托管对象,包含要封送的数据。该对象必须是格式化类的实例。
ptr:指向非托管内存块的指针,必须在调用此方法之前分配该指针。
fDeleteOld:设置为 true 可在执行Marshal.DestroyStructure方法前对 ptr 参数调用此方法。请注意,传递 false 可导致内存泄漏。



4. 异常



异常类型:ArgumentException
条件:structrue参数是泛型类型



5. 备注



StructureToPtr将结构的内容复制到 ptr 参数指向的预分配内存块。如果 fDeleteOld 参数为 true,则使用嵌入指
针上适当的删除 API 来删除最初由 ptr 指向的缓冲区,但该缓冲区必须包含有效数据。此方法为在镜像托管类中指
定的每个引用字段执行清理工作。

假设 ptr 指向非托管内存块。此内存块的布局由相应的托管类 structure 描述。StructureToPtr将字段值从结构封
送到指针。假设 ptr 块包含引用字段,该字段指向当前包含“abc”的字符串缓冲区。假设托管端上相应的字段是包含“vwxyz”的字符串。如果不另行通知它,StructureToPtr将分配一个新的非托管缓冲区来保存“vwxyz”,并将它挂钩到 ptr 块。这将丢弃旧缓冲区“abc”使之漂移而不将其释放回非托管堆。最后,您将得到一个孤立的缓冲区,它表示在代码中存在内存泄漏。如果将 fDeleteOld 参数设置为真,则 StructureToPtr 在继续为“vwxyz”分配新缓冲区之前释放保存“abc”的缓冲区。



6. 举例



定义PERSON结构,并将该结构的一个变量拷贝到非托管内存,再将该内存中的PERSON还原为PERSON对象,观察其内容的变化。


源代码如下:


using  System;
using  System.Text;
using  System.Runtime.InteropServices;

namespace  testStructureToPtr
{

public static class define  //define some constant
    {

public const int MAX_LENGTH_OF_IDENTICARDID = 20;   //maximum length of identicardid
        public const int MAX_LENGTH_OF_NAME = 50;           //maximum length of name
        public const int MAX_LENGTH_OF_COUNTRY = 50;        //maximum length of country
        public const int MAX_LENGTH_OF_NATION = 50;         //maximum length of nation
        public const int MAX_LENGTH_OF_BIRTHDAY = 8;        //maximum length of birthday
        public const int MAX_LENGTH_OF_ADDRESS = 200;       //maximum length of address
    }



public struct PERSON    //person structure
    {

//MarshalAs:指示如何在托管代码和非托管代码之间封送数据

//UnmanagedType:指定如何将参数或字段封送到非托管内存块
        [MarshalAs(UnmanagedType.ByValArray, SizeConst = define.MAX_LENGTH_OF_IDENTICARDID)]

public byte[] identicardid;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst
= define.MAX_LENGTH_OF_NAME)]

public byte[] name;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst
= define.MAX_LENGTH_OF_COUNTRY)]

public byte[] country;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst
= define.MAX_LENGTH_OF_NATION)]

public byte[] nation;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst
= define.MAX_LENGTH_OF_BIRTHDAY)]

public byte[] birthday;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst
= define.MAX_LENGTH_OF_ADDRESS)]

public byte[] address;
    }



class testProgram

{

private static byte _fillChar = ;      //the fill character


//convert string to byte array in Ascii with length is len
        public static byte[] CodeBytes(string str, int len)

{

if (string.IsNullOrEmpty(str))

{
                str
= string.Empty;
            }



byte[] result = new byte[len];

byte[] strBytes = Encoding.Default.GetBytes(str);


//copy the array converted into result, and fill the remaining bytes with 0
            for (int i = ; i < len; i++)
                result[i]
= ((i < strBytes.Length) ? strBytes[i] : _fillChar);


return result;
        }



//show the person information
        public static void ShowPerson(PERSON person)

{
            Console.WriteLine(
"cardid   :" + Encoding.ASCII.GetString(person.identicardid));
            Console.WriteLine(
"name     :" + Encoding.ASCII.GetString(person.name));
            Console.WriteLine(
"country  :" + Encoding.ASCII.GetString(person.country));
            Console.WriteLine(
"nation   :" + Encoding.ASCII.GetString(person.nation));
            Console.WriteLine(
"birthday :" + Encoding.ASCII.GetString(person.birthday));
            Console.WriteLine(
"address  :" + Encoding.ASCII.GetString(person.address));
        }



static void Main(string[] args)

{
            PERSON person;
            person.identicardid
= CodeBytes("123456198001011111", define.MAX_LENGTH_OF_IDENTICARDID);
            person.name
= CodeBytes("jackson", define.MAX_LENGTH_OF_NAME);
            person.country
= CodeBytes("China", define.MAX_LENGTH_OF_COUNTRY);
            person.nation
= CodeBytes("HanZu", define.MAX_LENGTH_OF_NATION);
            person.birthday
= CodeBytes("19800101", define.MAX_LENGTH_OF_BIRTHDAY);
            person.address
= CodeBytes("Luoshan Road, Shanghai", define.MAX_LENGTH_OF_ADDRESS);


int nSizeOfPerson = Marshal.SizeOf(person);
            IntPtr intPtr
= Marshal.AllocHGlobal(nSizeOfPerson);

            Console.WriteLine(
"The person infomation is as follows:");
            ShowPerson(person);


try

{

//将数据从托管对象封送到非托管内存块,该内存块开始地址为intPtr
                Marshal.StructureToPtr(person, intPtr, true);


//将数据从非托管内存块封送到新分配的指定类型的托管对象anotherPerson
                PERSON anotherPerson = (PERSON)Marshal.PtrToStructure(intPtr, typeof(PERSON));

                Console.WriteLine(
"The person after copied is as follows:");
                ShowPerson(anotherPerson);
            }


catch (ArgumentException)

{

throw;
            }


finally

{
                Marshal.FreeHGlobal(intPtr);
//free tha memory
            }

        }

    }

}


运行过程中的对象地址及其内容如下:


intPtr指向的内存块的内容就是程序中对person对象所赋的初值,如下图所示,共计378个字节:




对象person和another的地址及其identicardid成员的地址:

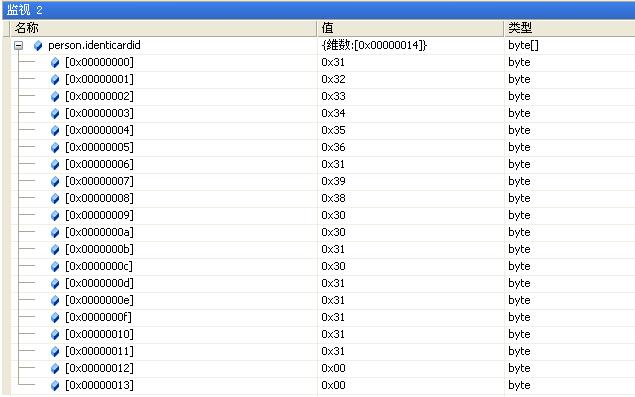

对象person的identicardid成员的内容,即程序中的值123456198001011111,最后的2个字节为0,图中显示的是20个元素的ASCII码的16进制数值:




运行结果如下:



原文链接:http://blog.csdn.net/livelylittlefish/article/details/2423764
