pcDuino上跑4x4x4 Led Cube Shield

pc朵拉 发布于 2013/11/29 23:36
阅读 294
收藏 0

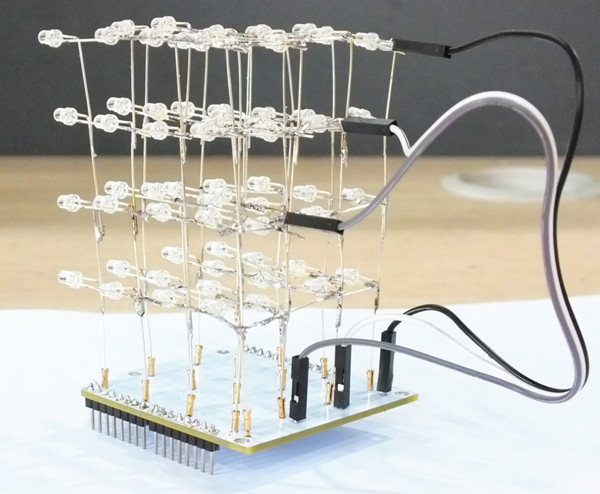

LED Cube Shield 是一个 由 64 个 LED 灯组成的,在使用之前必须要对其进行焊接。 DSCF2016_副本
  • 调试工具

面包板,pcDuino,杜邦线和LED Cube shield

IMG_20131127_161222_副本

  • LED Cube Shield焊接指南

请点击这里下载LED Cube Shield焊接指南。

  • 模块说明与连接

(一)接口功能(Interface Function)

1111

(1)Dx 表示 Digital pin; Ax 表示 Analog pin;0 ~ 15 见图示。

D0 D1 D2 D3 D4 D5 D6 D7
12 13 14 15 8 9 10 11
D8 D9 D10 D11 D12 D13 A0 A1
4 5 6 7 0 1 2` 3

上表中的 0 ~ 15 插槽都是用于插入 LED 阳极

(2)Dx 表示 Digital pin; Ax 表示 Analog pin

A2 A3 A4 A5
19 18 17 16

上表中的 16 ~ 19 插槽都是用于插入 LED 阴极

(二)与pcduino的链接(其中pcDuino上的D14~D17见本学习网站《你可能不知道的 pcDuino上的隐藏的GPIO》)

Led Cube Shield

pcDuino

D0

D0

D1

D1
D2

D2

D3

D3

D4

D4

D5

D5
D6

D6

D7

D7

D8

D8

D9

D9
D10

D10

D11

D11
D12

D12

D13

D13
A0

D14

A1

D15
A2

D16

A3

D17
A4

GND

A5

GND

  • 调试代码

#include <core.h>
unsigned char PatternTable[] = {
B0001,B0001,B0000,B0000,B0000,B0001,B0000,B0000,B0000,B0001,B0000,B0000,B0000,B0000,B0000,B0000,10,
B0011,B0001,B0000,B0000,B0000,B0001,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B0111,B0001,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1100,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1110,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B0001,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B0011,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B0111,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B1111,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B1111,B1000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B1111,B1100,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B1111,B1110,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B1111,B1111,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B1111,B1111,B1111,B1111,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B0111,B0111,B0111,B0111,B1000,B1000,B1000,B1000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,10,
B0011,B0011,B0011,B0011,B0100,B0100,B0100,B0100,B1000,B1000,B1000,B1000,B0000,B0000,B0000,B0000,10,
B0001,B0001,B0001,B0001,B0010,B0010,B0010,B0010,B0100,B0100,B0100,B0100,B1000,B1000,B1000,B1000,10,
B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0010,B0010,B0010,B0010,B0100,B0100,B0100,B0100,10,
B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0010,B0010,B0010,B0010,10,
B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,B0001,10,
B0010,B0001,B0001,B0001,B0010,B0001,B0001,B0001,B0010,B0001,B0001,B0001,B0010,B0001,B0001,B0001,10,
B0100,B0010,B0001,B0001,B0100,B0010,B0001,B0001,B0100,B0010,B0001,B0001,B0100,B0010,B0001,B0001,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,10,
B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,10,
B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,10,
B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,10,
B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,10,
B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,10,
B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,B0100,B0100,B0010,B0010,10,
B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,B1000,B0100,B0010,B0001,10,
B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,B0000,B1100,B0011,B0000,10,
B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,B0000,B0011,B1100,B0000,10,
B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0000,B0010,B0100,B0000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0000,B0000,B0000,B0000,B0000,B0010,B0100,B0000,B0001,B0010,B0100,B1000,B0001,B0010,B0100,B1000,10,
B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0010,B0100,B0000,B0001,B0010,B0100,B1000,10,
B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0000,B0010,B0100,B0000,10,
};

int LEDPin[] = {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15};
int PlanePin[] = {16, 17};
// initialization

void my_display(unsigned char *planeBuf)
{
int i = 0, j = 0;
for(j = 0; j < 16; j++)
{
digitalWrite(LEDPin[j], LOW);
}
/*
for(i = 0; i < 2; i++)
{
if(planeBuf[i*4] | planeBuf[i*4 + 1] | planeBuf[i*4 + 2] | planeBuf[i*4 + 3])
{
digitalWrite(PlanePin[i], LOW);
}
else
digitalWrite(PlanePin[i], HIGH);
}
*/
for(j = 0; j < 16; j++)
{
for(i = 0; i < 4; i++)
{
if(planeBuf[j] >> i & B0001)
{
digitalWrite(LEDPin[4 * (j % 4) + i], HIGH);
}
}
}
delay(200);
}
void setup()
{
int pin; // loop counter
// set up LED pins as output (active HIGH)
for (pin=0; pin < 16; pin++)
{
pinMode( LEDPin[pin], OUTPUT );
digitalWrite(LEDPin[pin], LOW);
}
// set up plane pins as outputs (active LOW)
for (pin=0; pin < 2; pin++)
{
pinMode( PlanePin[pin], OUTPUT );
digitalWrite(PlanePin[pin], LOW);
}
}
// display pattern in table until DisplayTime is zero (then repeat)
void loop()
{
// declare variables
unsigned char PatternBuf[16]; // saves current pattern from PatternTable
int PatternIdx;// indexes which byte from pattern buffer
PatternIdx = 0;
// loop over entries in pattern table – while PatternIdx < PatternMax
int i = 0;
int PatternMax = sizeof(PatternTable);
do{
for(i = 0; i < 16; i++)
{
PatternBuf[i] = PatternTable[PatternIdx++];
}
my_display(PatternBuf);

PatternIdx++;
}while(PatternIdx < PatternMax);
}

I am text block. Click edit button to change this text.

帖子来自: http://cnlearn.linksprite.com/?p=1488
